OrCAD PSpice Systems Option

PSpice MATLAB Simulink Interface

PSpice MATLAB Simulink Interface combines two industry leading simulation tools to create an environment for Electro-Mechanical system simulation.

The PSpice® MATLAB® Simulink® (PSpice Systems Option) provides designers with a system level simulation solution to for their designs. Designers utilize PSpice simulation solutions for accurate analog and mixed-signal simulations supported by a wide range of board level models. Simulink is a platform for multi-domain simulation and model-based design of dynamic systems. Together, designers now have the ability to perform system level simulations that include realistic electrical models of actual components. Design and integration problems can now be found much earlier in the design process saving time and reducing costs.



Contact sales

Access, directly from OrCAD Capture, thousands of new PSpice device model libraries



PSpice Systems Option Datasheet

OrCAD

OrCAD Capture CIS



OrCAD Capture CIS integrates the schematic design application with the features of a component information system (CIS) to streamline production, and help Capture users design more intelligently.

OrCAD PSpice PAA



Cadence PSpice Advanced Analysis Tools automatically fine tune your circuits for optimum performance and improved quality by using advanced simulations of critical metrics.



OrCAD PSpice Designer suites



Cadence OrCAD PSpice Designer suites provide powerful schematic entry, professional level simulation, and analysis in one streamlined, affordable package.



PSpice Systems Option benefits

  • Simulate electrical, mechanical, and system-level systems
  • Simulate with ideal models for faster simulation during proof of concept
  • Simulate with actual electrical designs using PSpice component models
  • Electrical simulations with PSpice models exhibit non-linearities, delay, and other real-world effects
  • Large library of electrical parts for PSpice and mechanical models and predefined blocks for Simulink
  • Full access to PSpice environment for in-depth electrical design and debugging
  • Full access to MATLAB for analyzing and visualizing data, developing graphical user interfaces, and creating model data and parameters
   Complementary tools for OrCAD PSpice Systems Option

OrCAD Capture   >
OrCAD Capture CIS option  >

OrCAD PSpice Designer  >
OrCAD PSpice PAA  >

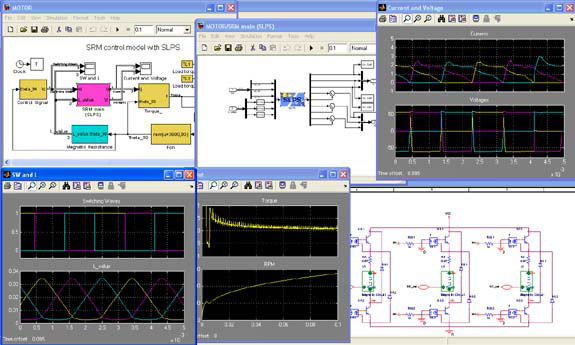

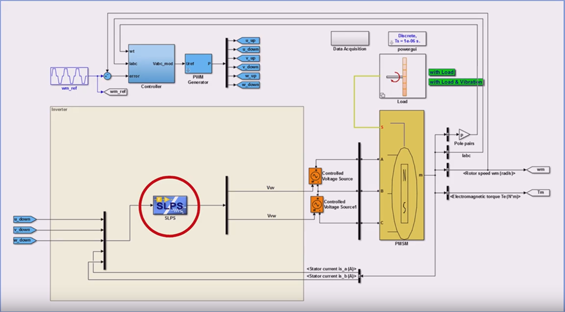

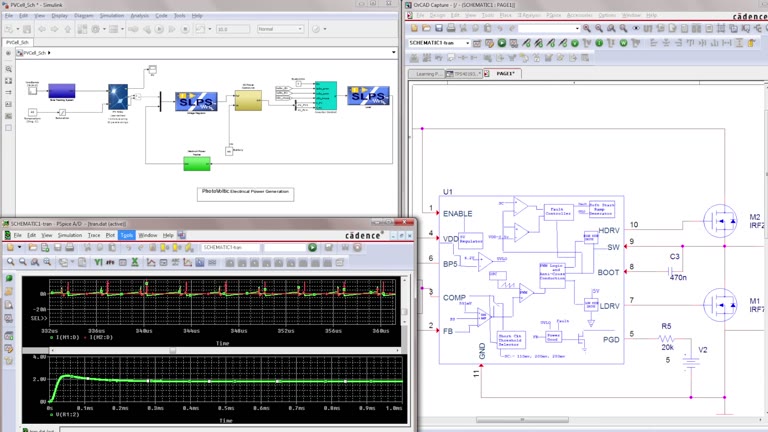

System and Circuit Level Co-Simulation

The Simulink-PSpice (PSpice Systems Option) Integration combines two industry-leading simulation tools into a co-simulation environment. Electromechanical/hydraulic systems such as control blocks, sensors, power converters, and body-electronics are designed using ideal mathematical models in Simulink. This forms an executable system-level specification for the design of the actual electronics. PSpice is then used to design the circuit based on this specification, providing simulation with more realistic models that exhibit nonlinearities, delay, and other real-life effects. Co-simulation then allows system-level interfaces to be tested with actual electrical designs without the need to prototype the complete system. As a result, design problems are found much earlier, saving crucial time and money often spent in debugging trail boards within system. prototypes

Electro-Mechanical Simulation

Two simulation environments provide the advanced capabilities necessary for electro-mechanical simulation. Full access to PSpice environment for in-depth electrical design and debugging. Full access to MATLAB for analyzing and visualizing data, developing graphical user interfaces, and creating model data and parameters.
